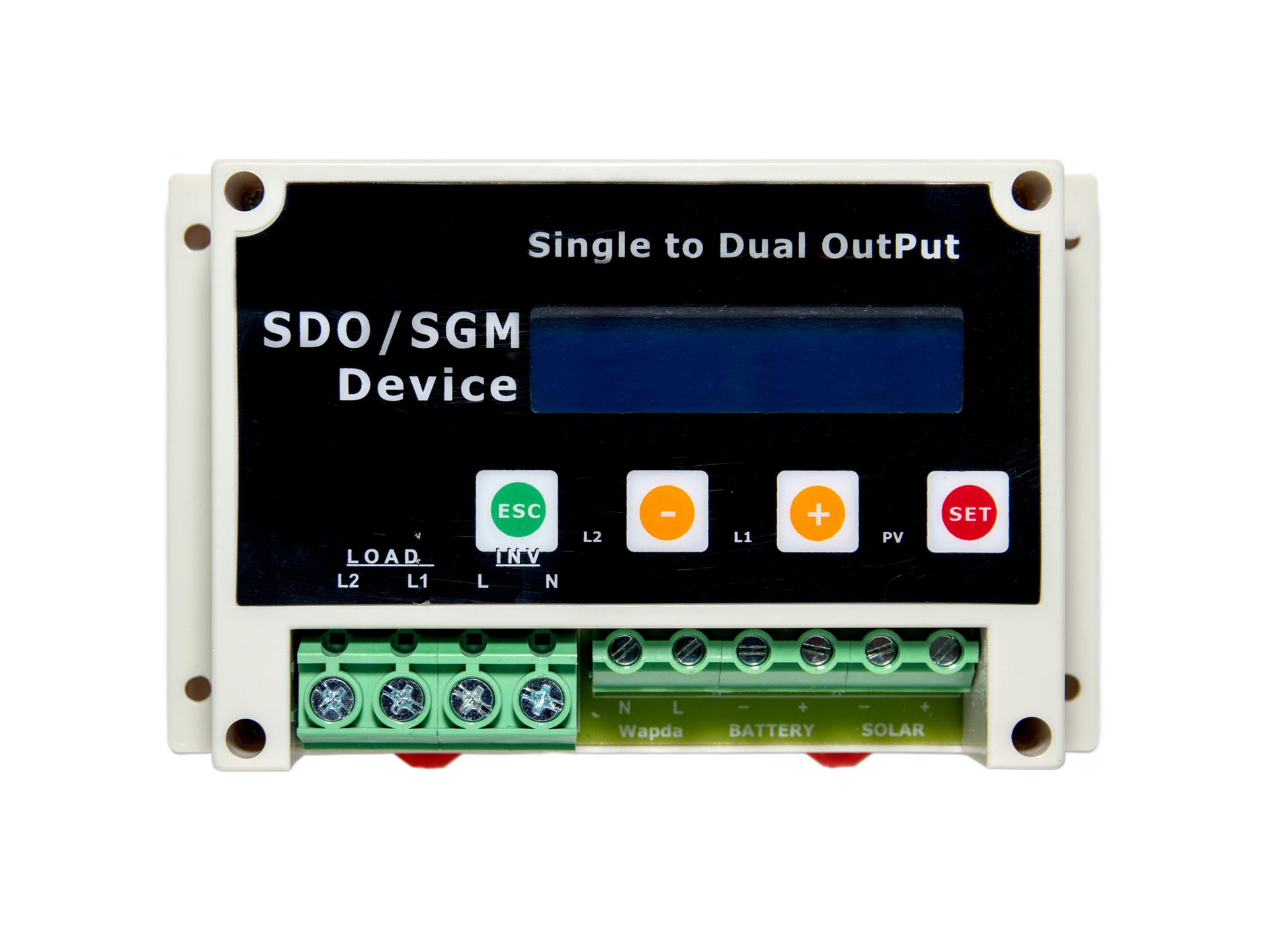

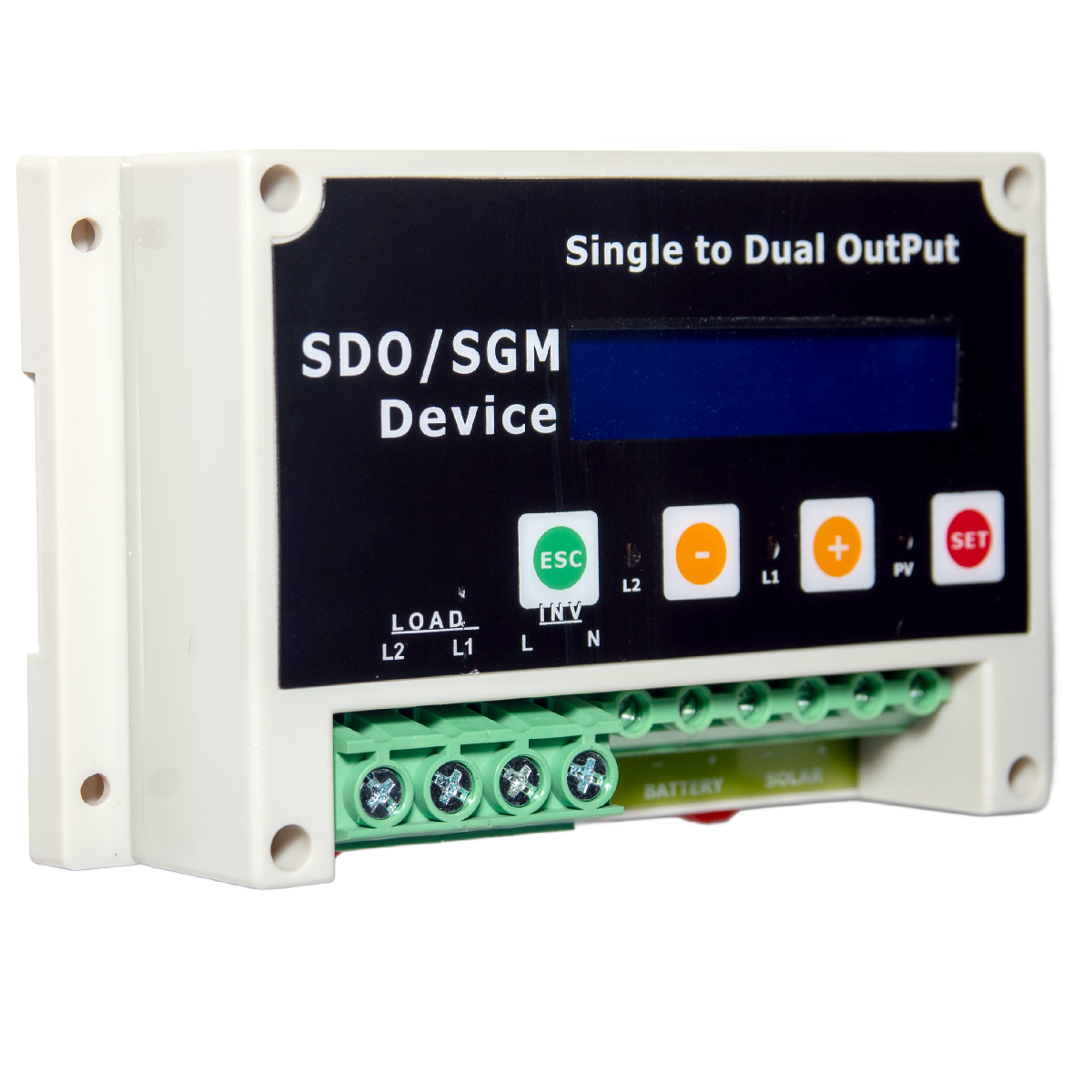

OneTronix® SDO (Single To Dual Out ) Device For Solar Inverter Hybrid Ups | 2 Year Brand Warranty

Name: OneTronix® SDO (Single To Dual Out ) Device For Solar Inverter Hybrid Ups | 2 Year Brand Warranty
Brand: Gulybaba
SKU: AR-000480
Price: 11750.96 PKR
Availability: InStock

5 sold in last 24 hours

Rs.11,750.96 Rs.13,518.96

Discount: Rs.1,768.00 (14%)

11 people are viewing this right now

Battery Voltage: 12V

12V

24V/48V

Hurry Up! Only 1 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Oct 27 - Oct 31

7 Days Return Policy

Availability: In Stock Unavailable

SKU: AR-000480

Vendor: Gulybaba

Guarantee safe & Secure checkout

Description
Additional Information
Shipping & Return
Reviews

SDO (Single To Dual Out ) Device For Solar Inverter Hybrid UpsThe SDO device is an intelligent Power management device
That is designed to optimally control single line to dual electrical
Supply lines. The SDO device is especially designed in situation where
Electrical load is divided into critical electrical load (PC, Fan, and Bulb)
and secondary Heavy electrical load like Air Conditions etc. The SDO
Device is designed for consumer applications hence it is the most compact
and smart power management device in the market.
Normally inverters primarily operates on solar and share extra required
power from utility power, in case, utility/Wapda supply failed, if solar is not
sufficient, the inverters draw all power from battery. In such scenario, where
battery is smaller or electrical load is too heavy, there will disastrous
consequences of complete system shutdown. This device is the excellent
solution for such problem. SDO device switch off heavy load while light load
remained intact without any interruption in this condition. The smart
algorithm and compact size makes it a unique product and an ideal choice to
be used with any house hold solar solution.
It is suitable for a wide range of battery systems and consumes less than
2.5watts of power for operation. It comes in a compact plastic casing that can
be mounted on the wall as well as on a standard DIN rail.
The unit measures PV voltage, Battery voltage and utility/Wapda power and
based on an intelligent algorithm control outputs (light and heavy electrical
load), which in-turn optimizes the Battery Storage/Life and ensure long
backup for critical loads. Optimum utilization of electrical load i.e. Primary critical load and
Secondary heavy load.
 Optimized for Battery Utilization increases battery cycles and enhances
battery life.
 Available for a wide range of battery systems
 Designed for a high PV voltage array input
 User configurable system parameters
 Industrial operation temperature range
 Operation completely independent from the inverter
 16×2 LCD and 4 buttons for configuration and system monitoring
 Easy to operate configuration menu
 High Contrast LCD with backlight for operation in low light conditions
 Reverse Battery and PV protection Ambient temperature sensor
